Ultra Clear Tsawg Hlau iav
Hauj lwm lawm
Kev tsis

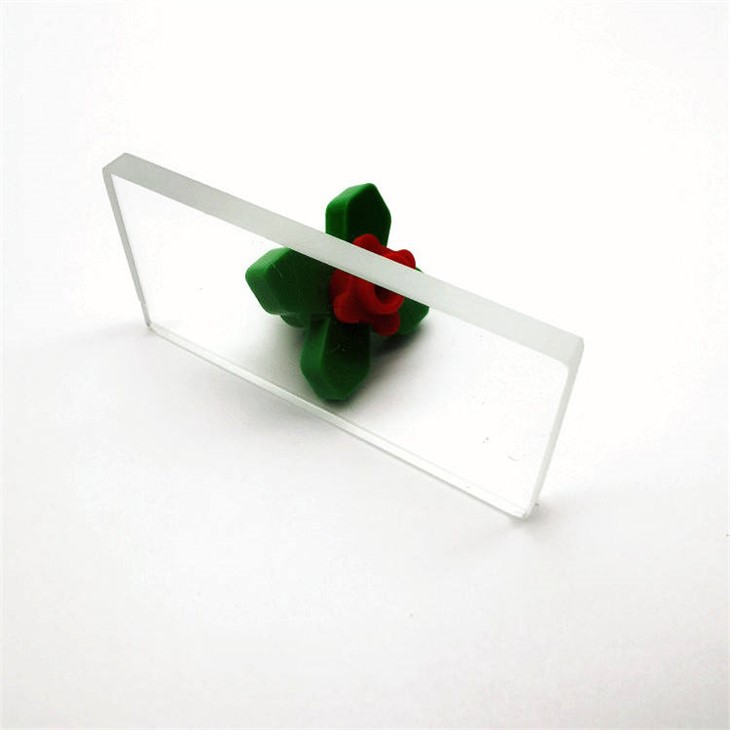

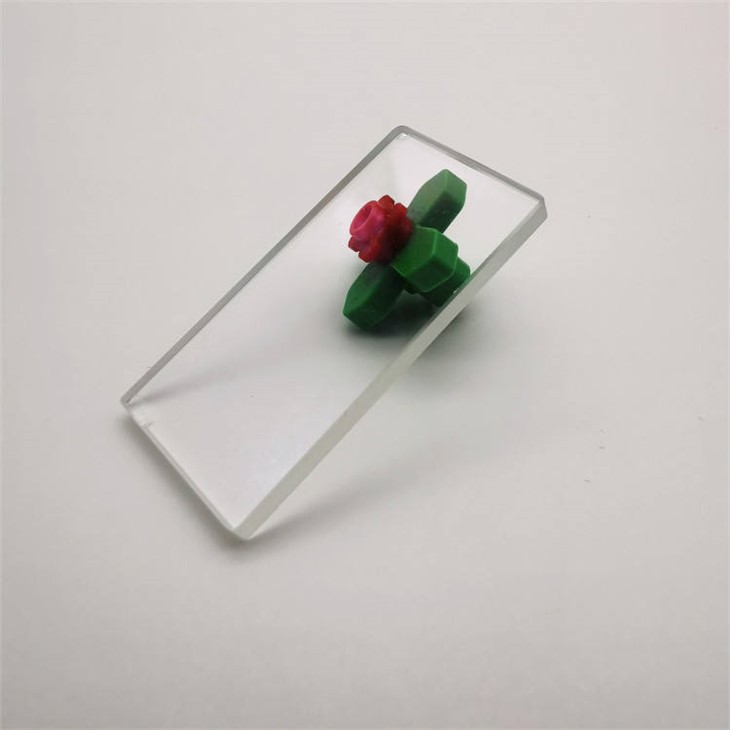

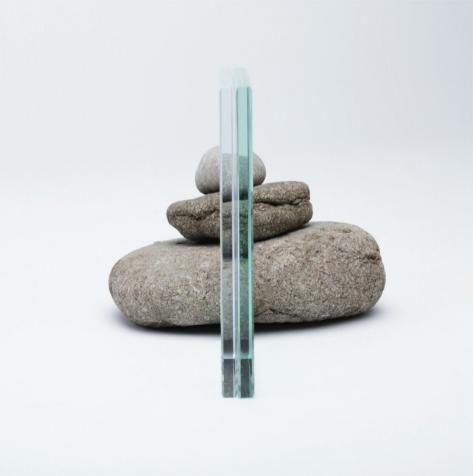

Dab tsi yog Ultra Clear Glass?
Cov iav uas tsis tshua muaj hlau, feem ntau hu ua ultra ntshiab iav, yog ib hom iav uas muaj cov hlau tsis tshua muaj siab uas ua rau pom qhov tshwj xeeb ntawm qhov pom tseeb thiab pob tshab. Vim muaj cov hlau oxide nyob rau hauv cov iav muaj pes tsawg leeg, cov iav tsoos feem ntau muaj cov xim ntsuab. Cov xim pom ntawm cov khoom pom los ntawm iav tuaj yeem cuam tshuam los ntawm cov xim ntsuab no.
Ultra ntshiab iav txo cov xim ntsuab thiab txhim kho cov xim ntuj thiab pom tseeb ntawm cov khoom pom los ntawm kev txo cov hlau hauv iav. Qhov no ua rau nws yog qhov kev xaiv zoo tshaj plaws rau kev siv xws li cov qauv tsim sab hauv, cov khoom siv vaj huam sib luag, kev tiv thaiv vaj huam sib luag, thiab lwm yam. qhov twg xim raug thiab pom tseeb yog qhov tseem ceeb. KS Ultra Clear iav Thickness ntau yam: 0 1-12mm.
Cov txiaj ntsig ntawm Ultra Clear Glass
- Txhim kho pob tshab thiab pom tseeb, ua kom pom tseeb xim sawv cev thiab pom kev zoo.
- Enhanc aesthetics, uas ua rau nws yog qhov kev xaiv zoo tshaj plaws rau kev tsim vaj tsev zoo nkauj thiab sab hauv tsim.
- Ua kom lub teeb transmittance, uas ua rau thaj chaw sib zog thiab zoo dua los ntawm lub teeb ntuj.
- Txo qhov cuam tshuam, uas ua rau lub ntsej muag tsis zoo thiab ua kom qhov muag pom kev.
- Zoo dua toughness thiab tsis kam rau dents thiab lwm yam kev puas tsuaj.
- Flexibility, ua kom tus kheej thiab siv ntau yam kev siv.
Lub cev muaj zog
|
Qhov ntom |
2530 kg/m3 |
(158 lb/ft3) |
|
Modulus ntawm Elasticity (Cov Hluas) |
7.2 x 1010 hli |
(10.4 x 106 psi) |
|
Modulus ntawm Rigidity (Shear) |
3. 0 x 1010 Pa |
(4.3 x 106 psi) |
|
Bulk Modulus |
4.3 x 1010 hli |
(6.18 x 106 psi) |
|
Poisson's Ration |
0.23 |
|
|
Specific Gravity |
2.53 |
|
|
Coefficient ntawm Thermal Stress |
0.62 mPa/degree |
(50 psi / degree F) |
|
Thermal conductivity |
0.937 Wm/m2 degree |
(6.5 btu.in/hr. degree F.ft2) |
|
Tshwj xeeb kub |
0.21 |
|
|
Coefficient ntawm Linear Expansion |
8.9 x 10-6 strain/degree |
(4.9 x 10-6 strain/ degree F) |
|
Hardness (Moh's Scale) |
5 rau 6 |
|
|
Refractive Index (Sodium D kab) |
1.523 |
|
|
(1 μm) |
1.511 |
|
|
(2 μm) |
1.499 |
|
|
Softening Point |
726 degree |
1340 degree F |
|
Annealing Point |
546 degree |
1015 degree F |
|
Strin Point |
957f ua |
(514 degree) |
|
Emissivity (Hemispherical) ntawm 75 degree F |
0.84 |
|
Daim ntawv thov
Zaub Npog iav
Cov khoom siv teeb pom kev zoo
Projection Ports
Zaub & Shelving
Optical lens
Architectural
Kev kho ntug
Factory Overview & Customer Visit
Tuam txhab Profile
Neeg tuaj xyuas
FAQ
Q: Yuav tsum iav tempered thiab dab tsi yog qhov txawv ntawm Chemical tempered thiab lub cev tempered?
Rau qhov me me / thickness tsawg dua 3.2mm, peb pom zootshuaj tempered.(sov toughen los ntawm 6-7H).
Kom loj dua qhov loj / tuab saum 3.2mm, peb pom zoolub cev tempered.
Raws li thermal tempered, qhov kev xeem fragmentation txheem / qhov ntau thiab tsawg & kom muaj nuj nqis tuaj yeem tsim los ntawm cov thickness sib txawv.
Lub iav flatness tuaj yeem nug tom qab tempering.
Q: Hom iav yuav siv li cas?
Teeb pom kev zooPeb feem ntau sivclear / ultra ntshiab ntab iavrau ntau lawm, nyob ntawm tus neeg siv khoom xav tau.
Npog iavPeb feem ntau sivAGC (Dragontail)rau ntau lawm, tab sis kuj muaj nyob rau hauvgorilla/NEG etc.raws li cov neeg siv khoom xav tau
Rooj tog iavPeb feem ntau sivhigh quality flat/bending iav
Q. Koj puas kam txais kev txiav txim me me?
Txhua qhov kev txiav txim kom muaj nuj nqis yog txais tos. Tab sis qee hom khoom yog tus nqi siab uas tsis haum rau kev txiav txim me me.
Q: Kuv puas tuaj yeem tau txais cov qauv thiab kuaj koj qhov Zoo?
Yog lawm. Txheeb xyuas peb cov kev muag khoom nrog cov ncauj lus kom ntxaws / Cov duab kos, lossis tsuas yog ib lub tswv yim lossis kos duab. Peb yuav xa cov qauv rau koj.
Q: Kuv yuav tsum muab dab tsi kom tau txais cov lus hais?
1. Hom iav, tuab thiab loj.
2. Kev kos duab ntawm lub khob
3. Kev xav tau hauv cov ntsiab lus.
4. Kev txiav txim kom muaj nuj nqis.
5. Lwm tus koj xav tias tsim nyog
6. Cov txheej txheem them nyiaj tshuav thiab qhia peb koj lub tswv yim ntawm kev xa khoom nyab xeeb.
7. Txaus siab rau koj qhov kev txiav txim.
Q: Koj lub tuam txhab nyob qhov twg? Qhov chaw nres nkoj nyob ze koj? Kuv tuaj yeem them nyiaj mus ntsib?
Zoo siab txais tos. Peb lub Hoobkas nyob hauv Guangdong Tuam Tshoj, ze rau Shenzhen thiab Guangzhou chaw nres nkoj. Thov qhia rau peb paub yog tias koj xav tuaj, peb yuav qhia txog kev taw qhia hauv cov ntsiab lus.
Cim npe nrov: Tuam Tshoj ultra clear low hlau iav manufacturers, lwm tus neeg
Kev xa khoom & Them nyiaj
Ntim:
Kauj Ruam 1: PE zaj duab xis txheej (Nquag) / ntawv (Rau seashipment tiv thaiv ntub).
Kauj ruam 2: Kraft daim ntawv rau fixation.
Kauj Ruam 3: Thawv rau iav tiv thaiv kev nyab xeeb.
Kauj Ruam 4: Kev cai ua plywood rooj plaub nrog pob khawm rau kev cai (fumigation ntxiv rau kev tshuaj xyuas yooj yim) yooj yim.
Kauj ruam 5: Packing pluaj rau fixation ntxiv.
Chaw nres nkoj
Shenzhen los yog Hongkong
